pgsc_calc Outputs & report

This page provides detailed technical documentation for all outputs produced by the PGS Catalog Calculator (pgsc_calc). It describes the structure and content of each file generated by the pipeline.

For further guidance on how to interpret the results, including understanding variant matching statistics, ancestry adjustments, score distributions, and uncertainty in PGS estimation, please refer to the companion interpretation guide.

Overview

The PGS Catalog Calculator (pgsc_calc) generates a structured set of outputs designed to make PGS analyses transparent, reproducible, and interpretable. All output files are written to a results directory (--outdir, default ./results/) with the following structure:

results
├── [sampleset name]
│   ├── match
│   └── score
└── pipeline_info

• [sampleset name] will change depending on the name of your samplset, it’s the directory with results for your data

• match contains processed scoring files and information on how variants in the scoring files match with variants in the target

• score contains individual level calculated scores and a summary report

• pipeline_info contains nextflow pipeline execution data

See below for a list of all files generated after running the test profile:

results
├── [sampleset name]
│   ├── match
│   │   ├── [sampleset name]_22_additive_0.scorefile.gz
│   │   ├── [sampleset name]_22_additive_1.scorefile.gz
│   │   ├── [sampleset name]_log.csv.gz
│   │   ├── [sampleset name]_summary.csv
│   │   └── versions.yml
│   └── score
│       ├── aggregated_scores.txt.gz
│       ├── report.html
│       └── versions.yml
└── pipeline_info
    ├── execution_report_2025-12-03_14-54-45.html
    ├── execution_timeline_2025-12-03_14-54-45.html
    ├── execution_trace_2025-12-03_14-54-45.txt
    ├── manifest_2025-12-03_14-54-45.bco.json
    ├── params_2025-12-03_14-56-25.json
    ├── pipeline_dag_2025-12-03_14-54-45.html
    └── software_versions.yml

Each component contributes to the overall reproducibility and interpretability of the analysis.

Report

A summary report is also provided for your samples (report.html). The report should open in a web browser and contains useful information about the PGS that were applied, how well the variants in your target dataset match with the reference panel and scoring files, a summary of the computed genetic ancestry data, and some simple graphs displaying the distribution of scores in your dataset(s) as a density plot. Some of the sections are only displayed with --run_ancestry, but we show them all here for reference.

Note

Interpretation

The HTML report is designed to give a quick overview of data quality and interpretability:

• Variant matching tables help assess whether a PGS is suitable for your dataset. Low overlap suggests limited reliability.

• Ancestry plots show target samples in reference PCA space. Large outliers may reflect misclassified samples or genotyping/imputation issues.

• PGS distribution plots display population-level variation and can reveal technical artefacts or calibration issues.

Use these visual summaries to verify score validity before using results in downstream analyses.

Example reports of the the test profile and ancestry analysis are available to view. The test profile is described in getting started.

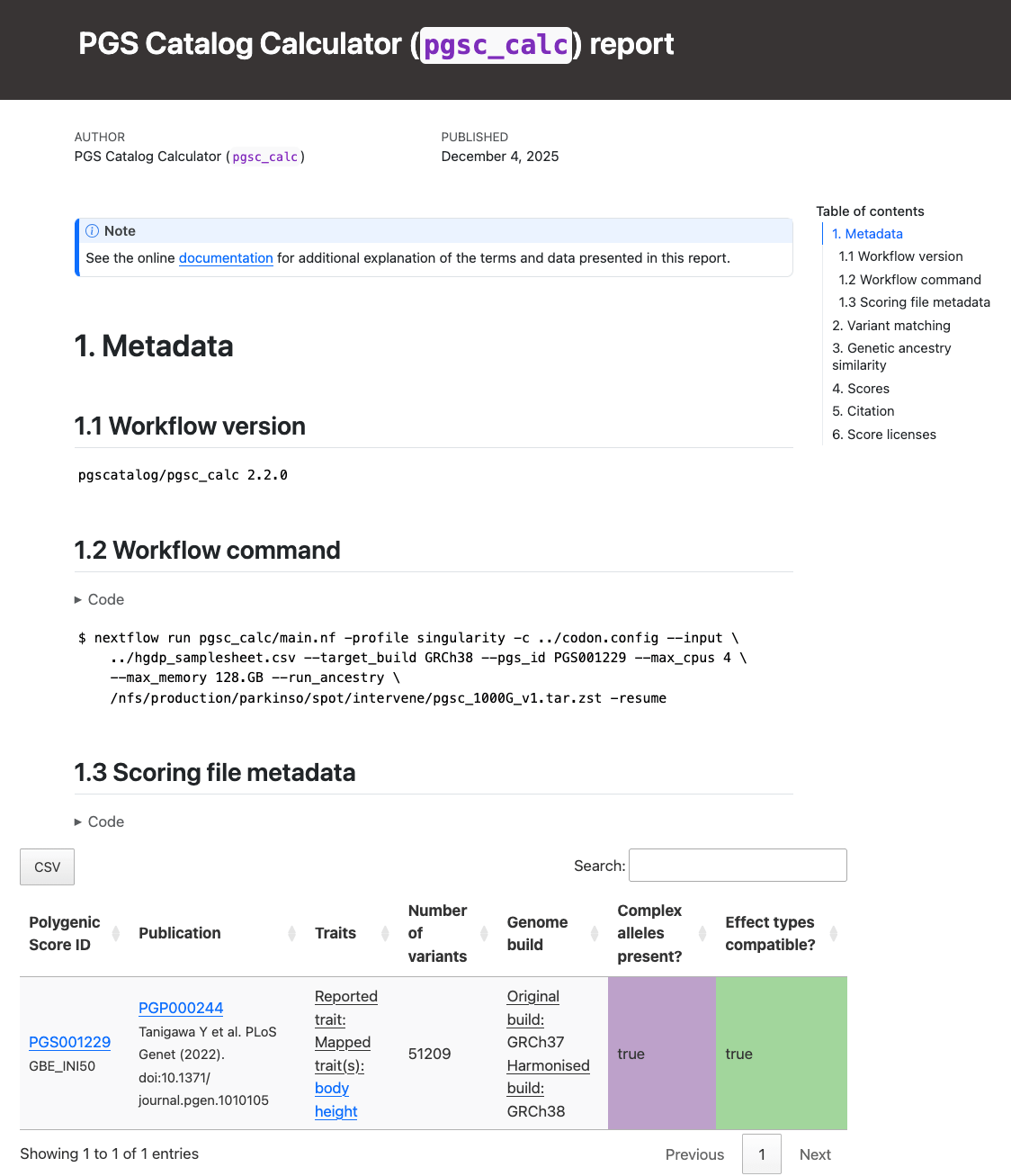

Section 1 (Metadata) of the report reproduces the nextflow command, and scoring file metadata (imported from the PGS Catalog for each PGS ID) describing the scoring files that were applied to your sampleset(s):

Report Section 1 (Metadata).

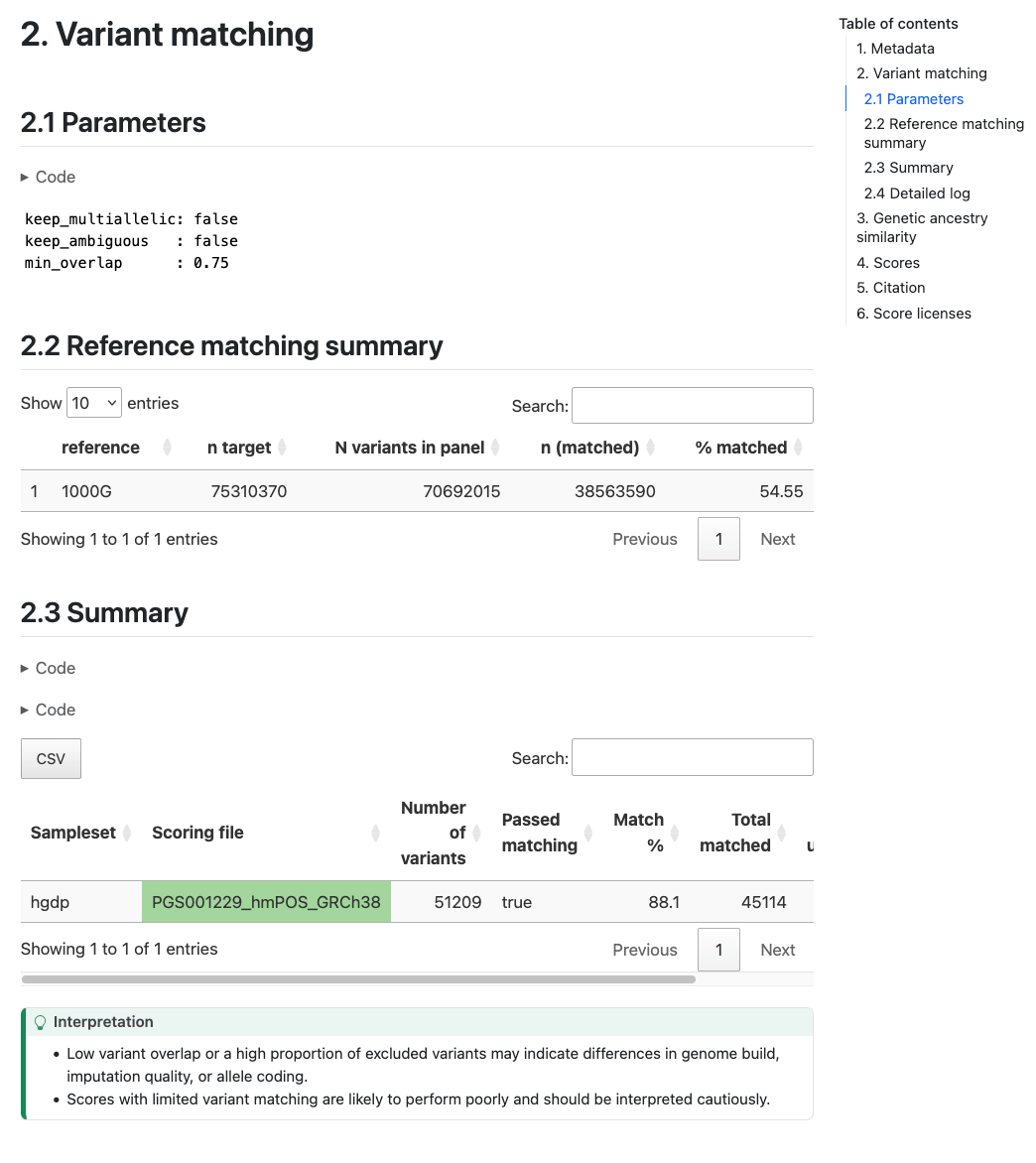

Section 2 (Variant matching) reports how the variants in the target sampleset match the variants in the scoring files. The table in Section 2.2 (“Reference matching summary”) describes the number of variants in the target dataset that overlap with the reference panel (only present with --run_ancestry). The table in section 2.3 (“Summary”) provides a summary of the number and percentage of variants within each score that have been matched, and whether that score passed the --min_overlap threshold (Passed Matching column) for calculation. The table in Section 2.4 (“Detailed log”) provides a more detailed log of variant matches broken down by types of variants (e.g., strand ambiguous, multiallelic, duplicates) for the matched, excluded, and unmatched variants (see match/ section for details):

Report Section 2 (Variant Matching) Example of variant matching summaries in the pgsc_calc report.

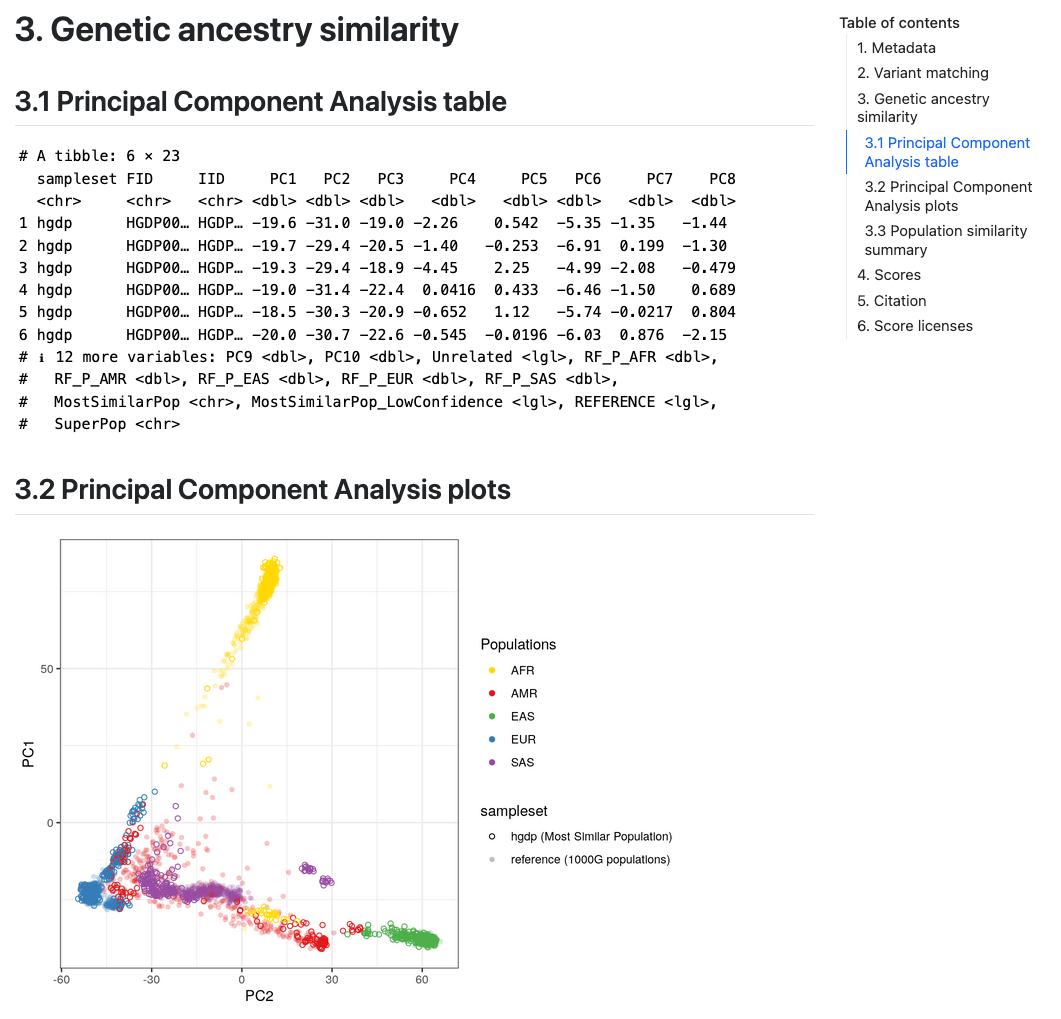

Section 3 (Genetic Ancestry/Similarity) describes the results of the genetic ancestry analysis of the target genotypes with the reference panel data. It first displays a snippet of the [sampleset]_popsimilarity.txt.gz file for reference in a table in Section 3.1 (“Principal Component Analysis table”). A visual display of the projection of the target data into the reference panel PCA space is plotted for the first 6 PCs in Section 3.2 (“Principal Component Analysis plots”), where the target samples are coloured according to the population that they are most similar to in the reference panel. A table in Section 3.3 (“Population similarity summary”) describing the distribution of ancestries within the reference panel and proportions of the target samples who are most similar to those populations is also provided.

Report Section 3 (Genetic Ancestry Similarity). Visualisation of genetic ancestry analysis (one of three PCAs shown).

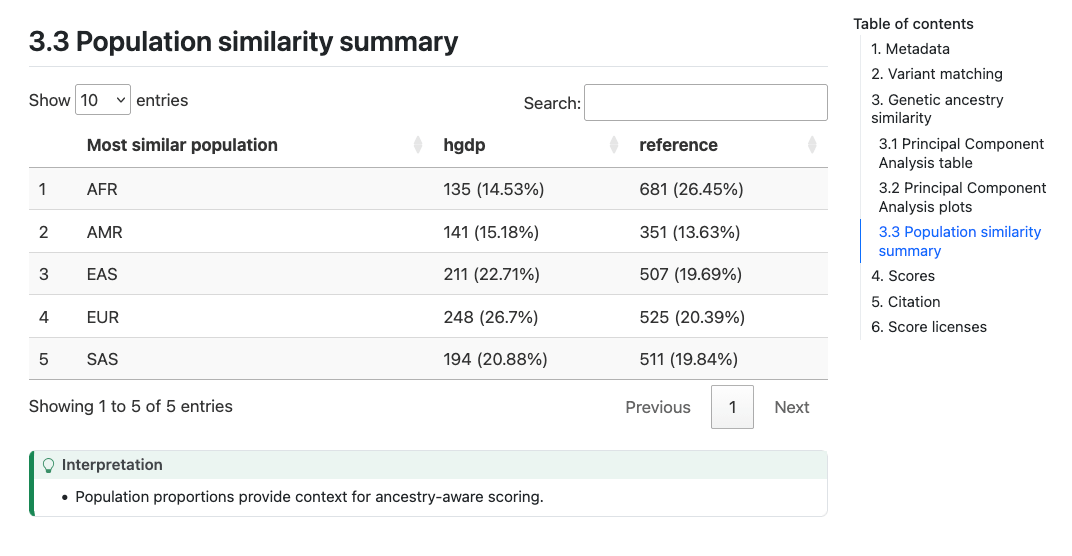

Report Section 3 (Genetic Ancestry Similarity). Population similarity table.

Note

Interpretation

It is important to visually inspect the PCA to make sure that it looks correct (placing the reference populations correctly), and that the projection of individuals from the target dataset looks sensible.

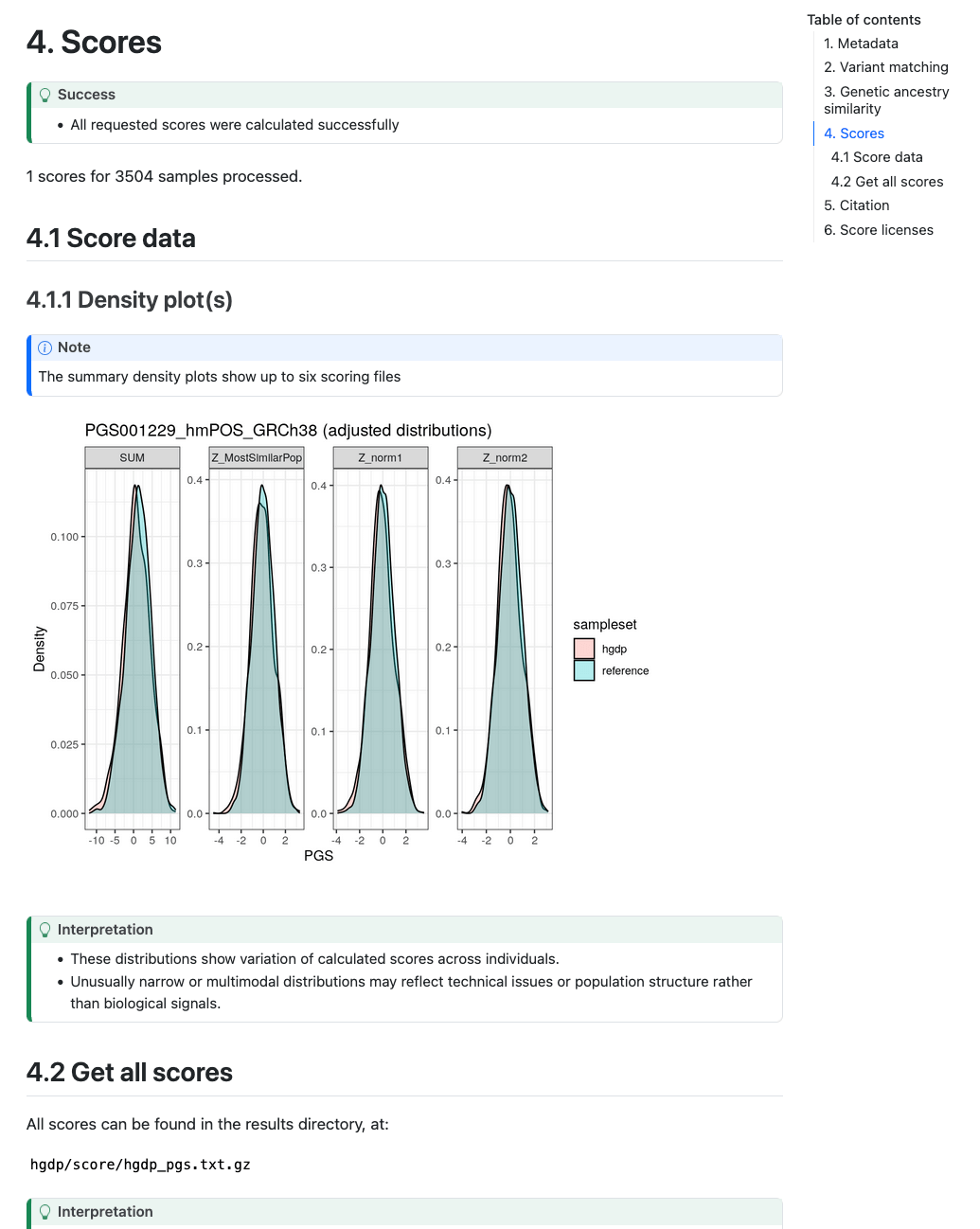

Section 4 (Scores) describes the number of scores that were calculated successfully. In Section 4.1.1 (“Density plot(s)”) a visual display of the PGS distribution for a set of example score(s) (up to 6) is provided in the Density plot panel which can be helpful for looking at the distributions of the scores in the target and reference dataset and how it changes for difference PGS adjustment methods:

Example scores section including plots of PGS distributions.

Plots are only created in the report if 50 or more samples are present in the target genomes.

score/

Calculated scores are stored in a gzipped-text space-delimited text file called [sampleset]_pgs.txt.gz. The data is presented in long form where each PGS for an individual is presented on a separate row (length = n_samples*n_pgs), and there will be at least four columns with the following headers:

• sampleset: the name of the input sampleset, or reference for the panel.

• FID: the family identifier of each sample within the dataset (may be the same as IID).

• IID: the identifier of each sample within the dataset.

• PGS: the accession ID of the PGS being reported.

• SUM: reports the weighted sum of effect_allele dosages multiplied by their effect_weight for each matched variant in the scoring file for the PGS.

If you have run the pipeline without using ancestry information the following columns may be present:

• DENOM: the number of non-missing genotypes used to calculate the PGS for this individual.

• AVG: normalizes SUM by the DENOM field (displayed when you calculate the PGS on a small sample size n<50 to avoid using unreliable allele frequency estimates for missing genotypes in the target sample.

Note

The PGS SUM & AVG are rounded to a precision of 6 decimal places in the ouput of the PLINK2_SCORE commands; however, the calculation of the PGS is based on the full precision of the effect_weight value in the scoring file.

Note

Interpretation

Low variant coverage or mismatched genome builds can introduce substantial uncertainty, so users should verify variant matching before interpreting results. If your samples all come from a homogenous ancestry group higher scores indicate greater genetic liability relative to others in the same dataset. This can be standardised (Z-score) to report relative genetic predisposition. If your samples are multi-ancestry then ancestry-adjusted scores should be calculated (–run_ancestry) to calculate relative genetic predisposition that is less confounded by ancestry.

Warning

Users should take note of whether the input samples were used in the development of the PGS being scored as this can lead to inflated estimate of PGS performance (see Wray et al. (2013) for discussion).

--run_ancestry-specific outputs

If you have run the pipeline using ancestry information (--run_ancestry) the following columns may be present in the [sampleset]_pgs.txt.gz file depending on the ancestry adjustments that were run (see Reporting and adjusting PGS in the context of genetic ancestry for more details):

• percentile_MostSimilarPop: PGS reported as a percentile of the distribution for the Most Similar Population

• Z_MostSimilarPop: PGS reported as a Z-score in reference to the mean/sd of the Most Similar Population

• Z_norm1: PGS adjusted to have mean 0 across ancestry groups (result of regressing PGS ~ PCs)

• Z_norm2: PGS adjusted to have mean 0 and unit variance across ancestry groups (result of regressing resid(PGS)^2 ~ PCs)

A second gzipped-text space-delimited text file called [sampleset]_popsimilarity.txt.gz will also be output, describing the analysis of the target samples in relation to the reference panel and ancestry labels. The file has the following headers:

• sampleset: the name of the input sampleset, or reference for the panel.

• FID: the family identifier of each sample within the dataset (may be the same as IID).

• IID: the identifier of each sample within the dataset.

• [PC1 ... PCN]: The projection of the sample within the PCA space defined by the reference panel. There will be as many PC columns as there are PCs calculated (default: 10).

• Unrelated: True/False flag for whether the reference panel sample is part of the unrelated subset of individuals used for calculating PGS adjustments.

• RF_P_[POP LABEL] or Mahalanobis_P_[POP LABEL]: Probability that this sample’s PCA projection is consistent with the PCA location of the specified population label defined using either a RandomForest classifier (RF, default) or the Chi-square derived probability from a Mahalanobis distance (Mahalanobis).

• MostSimilarPop: Population label with the highest probability across RF_P_[POP LABEL] or Mahalanobis_P_[POP LABEL] columns.

• MostSimilarPop_LowConfidence: Whether the probability is below the default QC threshold for the population comparison method.

• REFERENCE: True/False flag for whether the sample is from the reference panel.

• SuperPop: Population label from the reference panel used to assign the MostSimilarPop labels and PGS distributions for empirical adjustments.

Note

Interpretation

These ancestry-related fields (percentile and Z-scores) help users interpret how individuals compare to reference populations.

The “Most Similar Population” label is a statistical assignment (based on PCA projection), not a definitive ancestry label.

Percentiles and Z-scores are more interpretable scales for cross-population comparison, but the precision of these adjustments depends on reference population diversity and sample size. The effect size of standardised PGS may still differ between different ancestry groups.

match/

This directory contains information about the matching of scoring file variants to your genotyping data (sampleset). First a summary file (also displayed in the report) details whether each scoring file passes the minimum variant matching threshold, and the types of variants that were included in the score:

[sampleset]_summary.csv metadata

Report Field	column_name	Description
Sampleset	dataset	Name of the sampleset/genotyping data
Scoring file	accession	Name of the scoring file.
Passed matching	score_pass	True/False flag to indicate whether the scoring file passes the --min_overlap threshold and is included in the final scoring file.
Match type	match_status	Indicates whether the variants are matched (included in the final scoring file), excluded (matched but removed based on variant filters), or unmatched.
Ambiguous	ambiguous	True/False flag indicating whether the matched variants are strand-ambiguous (e.g. A/T and C/G variants).
Multiallelic	is_multiallelic	True/False flag indicating whether the matched variants are multi-allelic (multiple ALT alleles).
Multiple potential matches	duplicate_best_match	True/False flag indicating whether a single scoring file variant has multiple potential matches to the target genome. This usually occurs when the variant has no other/non-effect allele, and with variants that have different REF alleles.
Duplicated matched variants	duplicate_ID	True/False flag indicating whether multiple scoring file variants match a single target ID. This usually occurs when scoring files have been lifted across builds and two variants now point to the same position (e.g. rsID mergers).
Matches strand flip	match_flipped	True/False flag indicating whether the scoring file variant is originally reported on the opposite strand (and thus flipped to match)
Variant in reference panel	match_IDs	True/False flag indicating whether the variant from the scoring file that is matched in the target samples is also present in the variants that overlap with the reference population panel (required for PGS adjustment).
n	count	Number of variants with this combination of metadata (grouped by: [ match_status, ambiguous, is_multiallelic, duplicate_best_match, duplicate_ID, match_flipped, match_IDs]
%	percent	Percent of the scoring file’s variants that have the combination of metadata in count.

The log file is a CSV that contains all possible matches for each variant in the combined input scoring files. This information is useful to debug a score that is causing problems. Columns contain information about how each variant was matched against the target genomes:

[sampleset]_log.csv.gz metadata

column_name	Description
row_nr	Line number of the variant with reference to the original scoring file (accession).
accession	Name of the scoring file.
chr_name	Chromosome name/number associated with the variant.
chr_position	Chromosomal position associated with the variant.
effect_allele	The allele that’s dosage is counted (e.g. {0, 1, 2}) and multiplied by the variant’s weight (effect_weight) when calculating score. The effect allele is also known as the ‘risk allele’.
other_allele	The other non-effect allele(s) at the loci.
effect_weight	Value of the effect that is multiplied by the dosage of the effect allele (effect_allele) when calculating the score. Additional information on how the effect_weight was derived is in the weight_type field of the header, and score development method in the metadata downloads.
effect_type	Whether the dosage is calculated as additive ({0, 1, 2}), dominant ({0, 1}) or recessive ({0, 1}).
ID	Identifier of the matched variant.
REF	Matched variant: reference allele.
ALT	Matched variant: alternative allele.
matched_effect_allele	Which of the REF/ALT alleles is the effect_allele in the target dataset.
match_type	Record of how the scoring file variant effect_allele & other_allele match the REF/ALT orientation of the ID (e.g. refalt or altref), and whether the variant had to be strand-flipped to achieve a match (match_types ending with _flip). If the non-effect allele (other_allele) is missing from the scoring file variant the match_type will be either (no_oa_refalt or no_oa_altref) and include information about whether it was flipped.
is_multiallelic	True/False flag indicating whether the matched variant is multi-allelic (multiple ALT alleles).
ambiguous	True/False flag indicating whether the matched variant is strand-ambiguous (e.g. A/T and C/G variants).
match_flipped	True/False flag indicating whether the matched variant is on the opposite strand (flipped).
best_match	True/False flag indicating whether this the best match_type for the current scoring file variant.
exclude	True/False flag indicating whether this matched variant is excluded from the final scoring file.
duplicate_best_match	True/False flag indicating whether a single scoring file variants has multiple potential matches to the target genome. This usually occurs when the variant has no other_allele, and with variants that have different REF alleles.
duplicate_ID	True/False flag indicating whether multiple scoring file variants match a single target ID.
match_IDs	True/False flag indicating whether the matched variant is also found in the reference panel genotypes.
match_status	Indicates whether the variant is matched (included in the final scoring file), excluded (matched but removed based on variant filters), not_best (a different match candidate was selected for this scoring file variant), or unmatched.
dataset	Name of the sampleset/genotyping data.

Processed scoring files are also present in this directory. Briefly, variants in the scoring files are matched against the target genomes. Common variants across different scores are combined (left joined, so each score is an additional column). The combined scores are then partially split to overcome PLINK2 technical limitations (e.g. calculating different effect types such as dominant/recessive). Once scores are calculated from these partially split scoring files, scores are aggregated to produce the final results in score/.

Note

Interpretation

Variant matching is one of the main sources of heterogeneity in PGS calculation.

A high proportion of unmatched or flipped variants may point to genome build mismatches, strand orientation errors, or incomplete imputation.

Carefully review matching statistics, any score that fails the --min_overlap threshold may be unreliable and should be interpreted cautiously.

pipeline_info/

Summary reports generated by nextflow describing the execution of the pipeline in a lot of technical detail (see nextflow tracing & visualisation docs for more detail). The execution report can be useful to see how long a job takes to execute, and how much memory/cpu has been allocated (or overallocated) to specific jobs. The DAG is a visualization of the pipeline that may be useful to understand how the pipeline processes data and the ordering of the modules.

Note

Interpretation

These pipeline reports record the computational provenance of your analysis, the software versions, resources, and execution graph used.

They are mainly for reproducibility and troubleshooting, rather than biological interpretation of scores
